Outboard Brake Drum Heavy Duty Truck

  • Outboard Brake Drum Heavy Duty Truck
  • Outboard Brake Drum Heavy Duty Truck
  • Outboard Brake Drum Heavy Duty Truck
  • Outboard Brake Drum Heavy Duty Truck

Outboard Brake Drum Heavy Duty Truck

Descrição do produto

Product Description

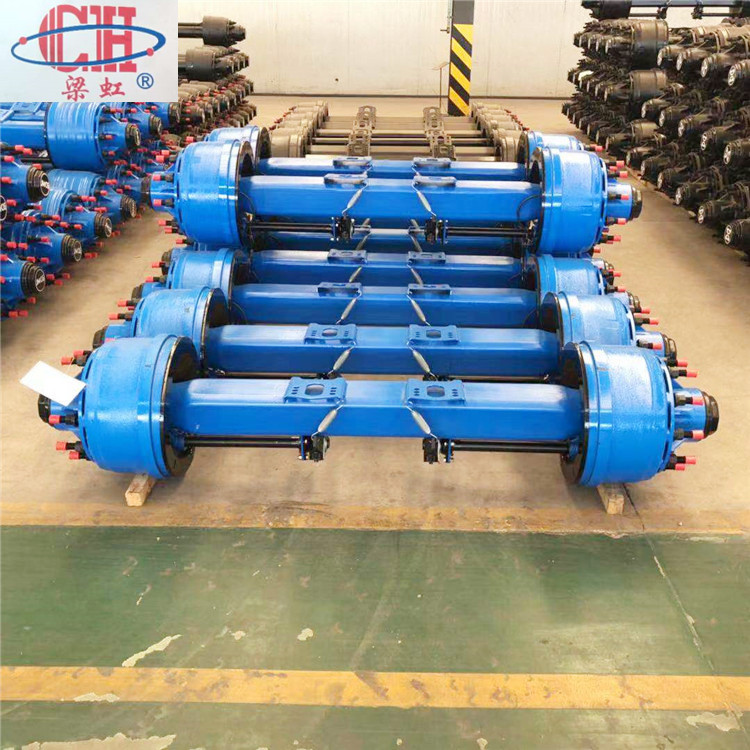

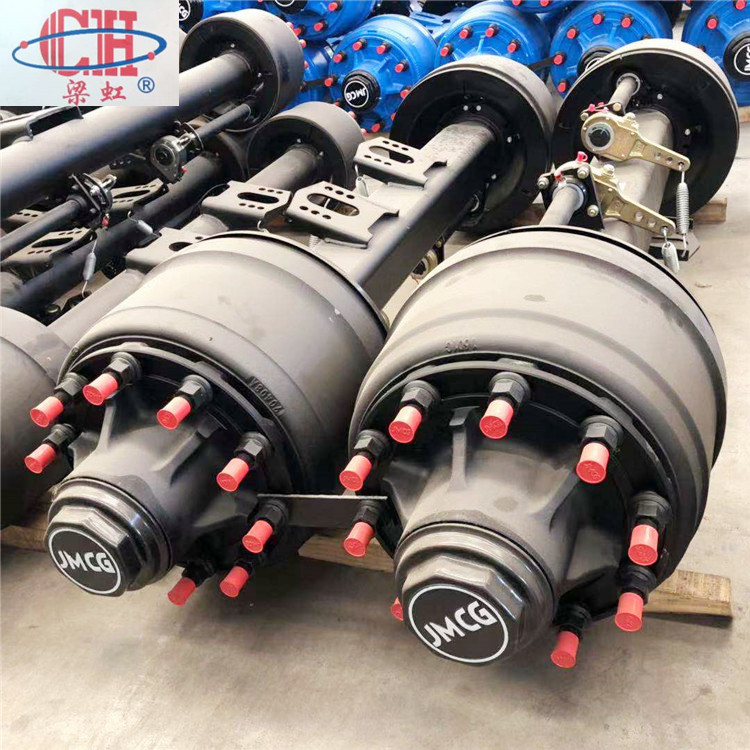

Standard Size Outboard Brake Drum Heavy Duty Truck Semi Trailer Axles

Product Features

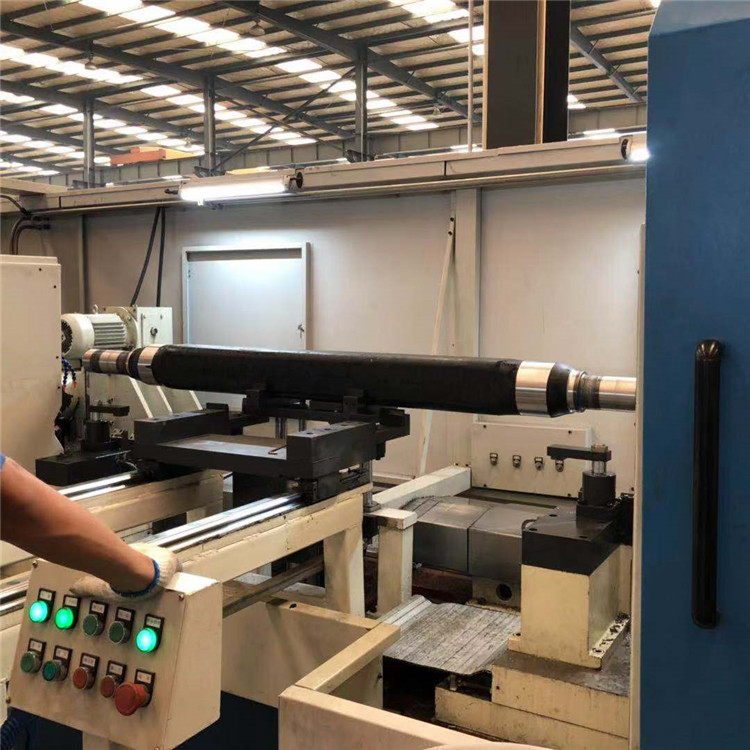

. One high-quality low-alloy axde tube has strong carrying capacity and high bending strength. . The axle tube tempered as a whole and then quenching optimized which made by finishing high-precision machinery. . Environmentally friendly Non-asbestos brake shoe which increase the wear life of more than 25%
. Brake components have strong interchangeability, S-camshaft, so that have more flexible and reliable brake action . Adopt Mobil XHP222 grease which has maintenance-free longer. · Adopt heavy-duty bearings which specially used for heavy vehicles have strong interchangeability. . The unique beauty with O-ring of the steel wheel cover has special good performance. . ABS Optional.
  • Note

(1) Optional track lengths available
(2)Available With ABS Fixing Features

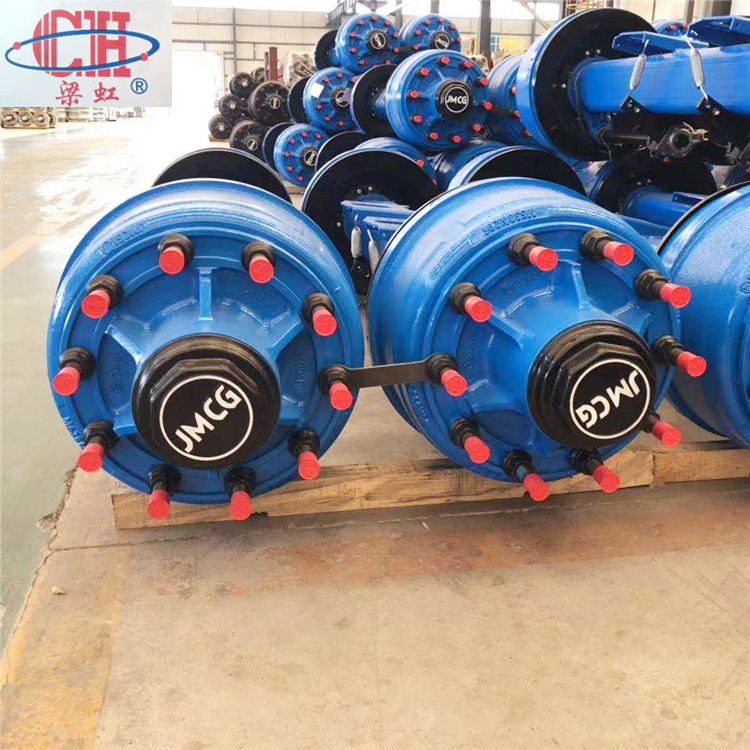

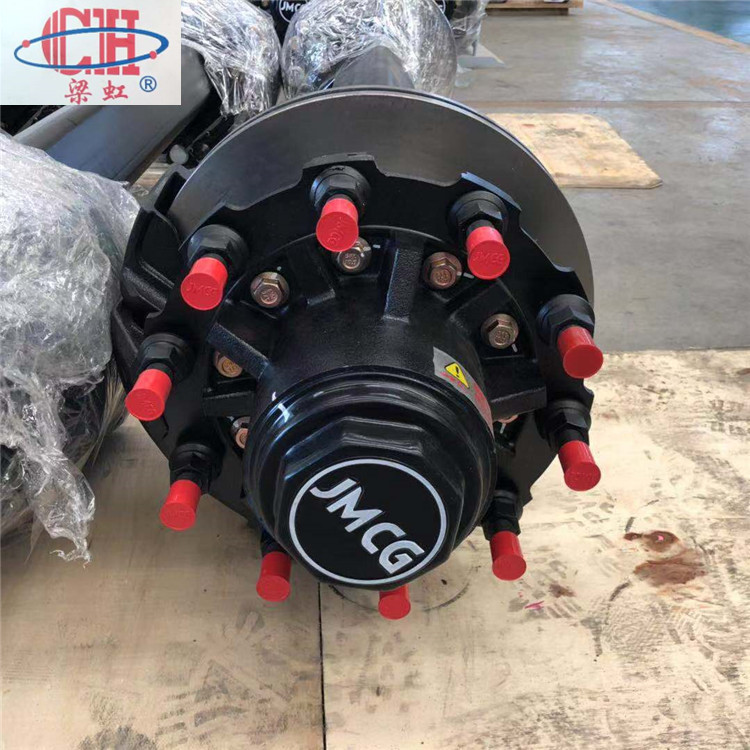

Detailed Images
Size Information
Axle Type
HY130C1-A
Max Capacity
13T
L2 Track
1840mm
Brake
420*180mm
Bearing
HM518445/10
Spring Seat Installation
>=930
Axle Beam
150mm
Centre Distance of Chamber
372mm
Wheel Fixing
Stud
10*M22*1.5ISO
P.C.D
335MM
Center hole diameter
335
Total Length
2165mm
Recommended Wheel
>=7.5v-20
Axle weight
370kg
Axle-In Brake Drum Series Specifications
Related Products

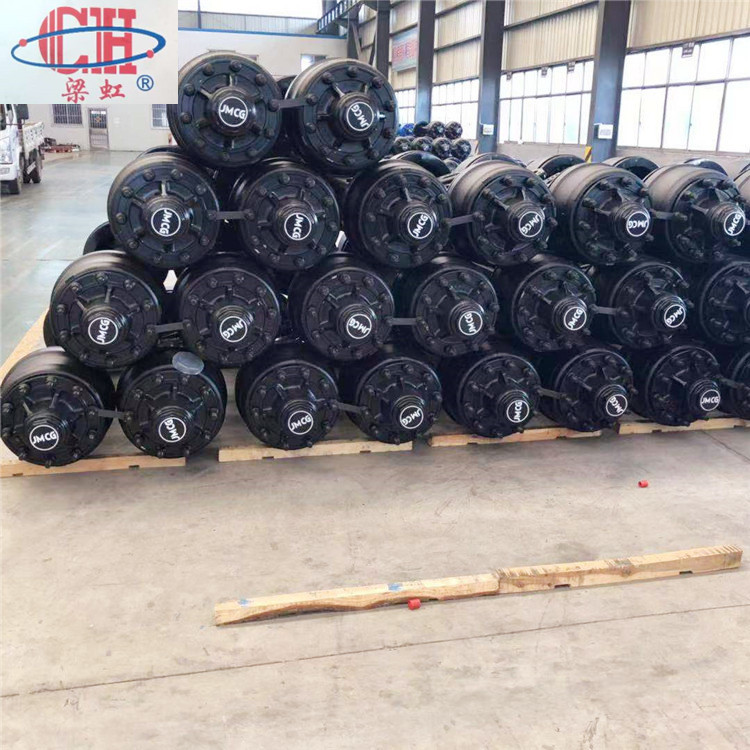

Packing&Shipping

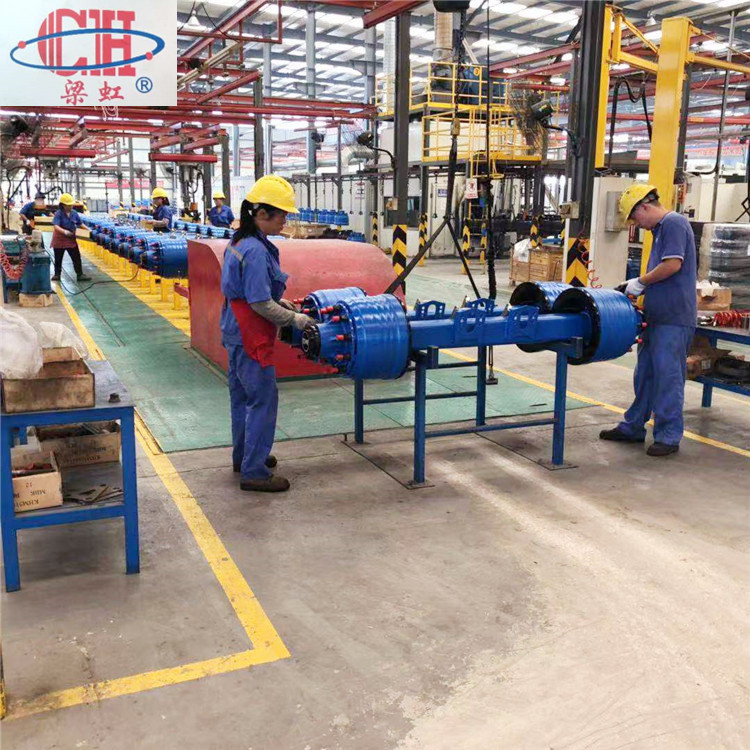

Company Introduction
Liangshan Changhong Special Purpose Vehicle Manufacturing Co.,Ltd. , as a trailer manufacturer, has been dedicated to provide our customers with high-qualified trailers and additional values since 2007.
Located in Liangshan County--the largest trailer base in China, Changhong has 20 senior engineers and 800 experienced employees, covering 72968 square meters. Our main products contains semi-trailer, box trailer, lowbed trailer, dumper trailer, tank trailer , and container trailer, vehicle transporter, etc. Customized production is also workable thanks to our R&D Center. Advanced automatic production and testing equipment ensures unmatchable quality in products. High-strength steel from Chinese national steel company and submerged-arc welding technology ensure the trailer suitable for different road conditions with higher load. After years of development, Changhong has obtained high reputation and market share in both China and abroad. In addition, our products had passed I S O 9 0 0 1
FAQ

Why choose our products?

1,We have more than 10 years experience in the trailer industry. All kinds of special vehicles can be customized according to customer requirements.

2. The company has more than 20 senior engineers and 800 workers.
3. We have our own workshop, covering 72968 square meters. Building area 20000 square meters
4. The most reliable supplier. Exports to more than 80 countries.
5. Our company is a modern enterprise integrating R&D, design, manufacturing and sales.

Certifications

Liangshan Changhong Special Purpose Vehicle Manufacturing Co., Ltd.

 Liangshan Changhong Special Purpose Vehicle Manufacturing Co., Ltd. , como fabricante de reboques, tem se dedicado a fornecer aos nossos clientes reboques altamente qualificados e valores adicionais desde 2007. Localizada no condado de Liangshan - a maior base de reboques na China, Changhong tem 20 engenheiros seniores e 800 funcionários experientes, cobrindo 72968 quadrados metros. Nossos principais produtos contêm semi-reboque, reboque de caixa, reboque rebaixado, reboque basculante, reboque tanque e reboque de contêiner, transportador de veículos, etc. A produção personalizada também é viável graças ao nosso Centro de P&D. Equipamentos avançados de produção e teste automáticos garantem uma qualidade incomparável nos produtos. O aço de alta resistência da empresa siderúrgica nacional chinesa e a tecnologia de soldagem por arco submerso garantem que o reboque seja adequado para diferentes condições da estrada com carga maior. Após anos de desenvolvimento, a Changhong obteve grande reputação e participação de mercado na China e no exterior. Além disso, nossos produtos passaram pela ISO 9 0 0 1
